Product Details:
|
| Power: | AC 220V 380V Singel/3 Phase | LED Displayer: | 7 Inches |
|---|---|---|---|
| Speed: | 0.4-1.0m/s | Capicity: | 4-6P |
| High Light: | Fuji passenger freight elevator,machine roomless passenger freight elevator,6 persons fujilift |
||

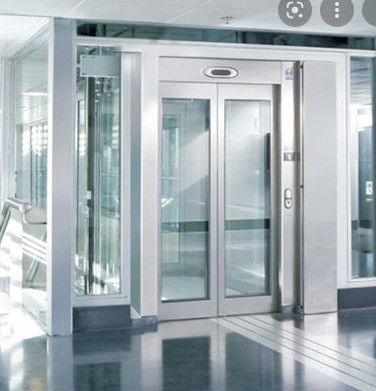

Fuji Machine Roomless Passenger Freight Elevator 6 Persons Fujilift
Product Features
Key Components
1. Elevator Traction Machines
Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.
2. Elevator Door System
Adopts VVVF technology and it ensures noiseless and smooth operation.
3. Control System adopts Full Serial Villa Elevator Controller
Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.
2.2kw low power is specially designed for villa elevator.
4. Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
Residential Home Elevators and villa elevator, whether in terms of quality or decoration, is dedicated to creating a permanent, graceful enjoyment in life. Special inverter systems control the running position, upgrading the comfort feeling all-sided. With the advanced permanent magnet synchronous technology adopted, the advantage of energy-saving is maintained and the elevator is more rationally arranged in a concise way. It is compact and economic elevator for the villa-like and multistoried buildings, and ideal lifting vehicle for old man, patient and disabled people.
Function for Residential Home Elevators and villa elevator
| B | Standard Function | O | Optional Function |
| Safety Features | |||
| Fault Detection | |||
| B | Motor Overheating Protection | B | Forbidden Switch of Door Opening |
| B | Subsection Inspection of Safety Circuit | B | Speed Governor Tension Safety Contacts |
| B | Main Power Switch Box | B | Car Door Contacts |
| B | Running Hours Cumulating | B |
Car Lighting Main Switch Box Main Fuse Inside of Controller Box |
| B | Car Positioning Switch | B | Pit Brace Rod Contacts |
| B | Car Emergency Stop Switch--Car Top | B | Car Top Brace Rod Contacts |
| B | Car Emergency Stop Switch--Pit | B | Electrical Brake Releasing Function |
| B | Safety Gear Safety Contact | B | Car Emergency Light |
| B | Speed Governor Safety Contacts | O | ARD--- Automatic Rescue Device |
| B | Main Switch Inside Controller Box | B | Emergency Call(One Digit Dial Telephone) |
| Information Function | Comfort Functions | ||
| Landing Information Display | Entering & Exit Cabin | ||
| B | Landing Call Indicating Light | B | Door Opening Button |
| O | Travelling Direction Indicators at Every Floor, Floor Number Display | B | Door Closing Button |
| B | Light Curtain | ||
| Inside Cabin Information Display | Comfortable Running | ||
| B | COP Call Indicating Light | B | Car Lighting |
| B | Overload Symbol& Buzzer | B | Fan |
| B | Car Position Display | O | Background Music |
| B | Travelling Direction Indicators | O | Voice Announcer |
| CCTV Camera | Misusage Protection | ||
| B | Door Zone Indicating Light | B | Calling Cancellation by 2 Times Button Pressing on COP |
| B | Running Times Accumulating | B | Viscous Button Monitoring |
| B | Normal Fault Signal | B | Opposite Direction Calling on COP |
| Control Functions | |||
| Prior/Special Service Functions / Special Functions | |||
| B | Landing Call Forbidden | B | Testing Running |
| B | Auto Door | O | Functions for Disabled (Braille Button, Voice Announcer) |
| B | Door Opening and Closing Timing at Each Floor, Unified Regulation | B | Re-Opening Door When Landing Call |
| B | Inspection Running | O | Through Opening Door |
| B | Emergency Returning | O | Optional Door is Available (If It is Through Opening) |
Elevator technical parameter table(MRL elevator)
| Model | Capacity | Persons | Speed | Cabin | Net opening size | Shaft | Overhead Height | Pit Depth | |||
| CW | CD | JJ | HH | HW | HD | OH | PH | ||||
| TKJ450/0.63 | 450 | 6 | 0.63 | 1100 | 1100 | 700 | 2100 | 2000 | 1700 | 4100 | 1700 |
| TKJ450/1.0 | 1 | 4100 | 1700 | ||||||||
| TKJ450/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ630/1.0 | 630 | 8 | 1 | 1400 | 1100 | 800 | 2100 | 2300 | 1700 | 4100 | 1700 |
| TKJ630/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ630/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ800/1.0 | 800 | 10 | 1 | 1400 | 1350 | 800 | 2100 | 2300 | 1800 | 4100 | 1700 |
| TKJ800/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ800/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1000/1.0 | 1000 | 13 | 1 | 1600 | 1400 | 900 | 2100 | 2500 | 1900 | 4100 | 1700 |
| TKJ1000/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ1000/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1250/1.0 | 1250 | 16 | 1 | 1900 | 1500 | 1100 | 2100 | 2900 | 2000 | 4100 | 1700 |
| TKJ1250/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ1250/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1600/1.0 | 1600 | 21 | 1 | 2000 | 1750 | 1100 | 2100 | 3000 | 2400 | 4500 | 1700 |
| TKJ1250/1.5 | 1.5 | 4600 | 1800 | ||||||||
| TKJ1250/1.75 | 1.75 | 4600 | 1800 | ||||||||
ABOUT US
Guangdong Fuji Elevator CO;LTD was founded in 1997 with a registered capital of 200 million yuan. It is a large-scale professional elevator enterprise integrating design, research and development, manufacturing, marketing, installation, and maintenance services. Guangdong Fuji Elevator has won the trust and support of more than 100 corporate customers around the world with its excellent technology, high-quality products, and sincere service.
With the increasing strength of the enterprise, dual production bases came into being: No. 1 production base is located in Shunde, Guangdong, the hometown of household appliances in China, covering an area of more than 30,000 square meters; No. 2 production base is located in Yizhang, Chenzhou, Hunan, with a total investment of 330 million yuan.
We have high quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
The company respects users as God, adheres to the tenet of "service first", implements design, production, installation, maintenance and other one-stop services for the elevator projects it receives, and promises to provide customers with formal after-sales service in strict accordance with relevant national requirements. At present, the company has more than 30 after-sales service outlets nationwide, more than 300 professional maintenance teams, and 3 after-sales service outlets in downtown Chenzhou, which can be added as needed; the professional team insists on maintaining the elevator every half month Maintenance, in case of emergency, technicians arrive at the scene within 30 minutes, 24 hours a day, 24 hours a day, year-round after-sales service purpose; the company's products are purchased with equipment professional insurance, which provides more effective protection for customers: in view of the current situation.
