Product Details:
|
| SS ELevator Cabin: | 304# Ss Cabin Lift Passenger Elevator Luxry Elevator | Capacity: | 6-20 Persons |
|---|---|---|---|
| Inveter: | VVVF Speed Controll | Energy Saving: | Home Lift Only 1 Kw With LED Light |
| Long Warranty: | 1year Warranty | ARD: | 1 Unit 2-15kw |
| Affordable Price: | With High Quality First,factory Pricing | Customizable: | Following Client's For Decorative Materials |
| High Light: | 1050KG mrl passenger lift,VVVF 14 persons mrl passenger lift,VVVF AC Control passenger lift cabin |
||

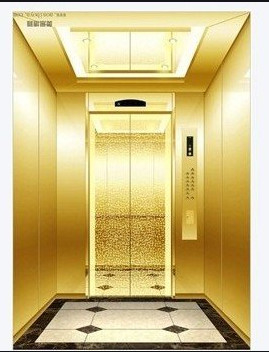

1050KG 14 Persons MRL Passenger Lift Cabin VVVF AC Control
1. Why to choose your factory?
We have done these decades before,so we have rich experience. We can provide you the high-quality products with the best price.
2. What is the valid of your price?
Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 day valid. If you need any update price, please feel free to contact us.
3. How long can you arrange delivery?
About 30 days after we received the deposit (30% by T/T in advance, 70% by T/T or L/C before shipment), all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running.
4. What documents can you provide me for Customs clearance?
We will provide you with usual documents: Commercial Invoice, Packing List, BL. The other documents also can be provided upon request.
5. When I come to China, What services can you provide?
When you come to my city Shanghai, we will provide you with the transportation support, take you to visit the factory, offer purchasing suggestions, show you the products, and for any other help you need, please feel free to let us know.
Details Specification :
|
Model |
Load KG |
Passenger No. |
Speed m/s |
Car specification CWxCD (mm) |
Door opening JJxOPH (mm) |
Pit depth Pit (mm) |
Top floor height OH (mm) |
POWER |
|
| TKJ630/1.0 |
630 |
8 |
1 |
1200x1350 |
700x1750 |
1400 | 4200 | 4.2 | |
| TKJ630/1.5 | 1.5 | 1500 | 4350 | 6.4 | |||||
| TKJ630/1.75 | 1.75 | 1600 | 4400 | 7.4 | |||||
| TKJ800/1.0 |
800 |
10 |
1 |
1400x1350 |
800x2100 |
1400 | 4200 | 5.4 | |
| TKJ800/1.5 | 1.5 | 1500 | 4350 | 8.1 | |||||
| TKJ800/1.75 | 1.75 | 1600 | 4400 | 9.4 | |||||
| TKJ1000/1.0 |
1000 |
13 |
1 |
1600x1400 |
900x2100 |
1400 | 4200 | 6.8 | |
| TKJ1000/1.5 | 1.5 | 1500 | 4350 | 10 | |||||
| TKJ1000/1.75 | 1.75 | 1600 | 4400 | 11.7 |
(Teh data is for design reference only. Regarding detailed parameters, please take technical drawing as criterion.)
Note: If specification exceeds above range, please contact FUJI Elevator Company.
Quick Details:
Warranty: 1 Year, 13 months
After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
Application: Office Building
Design Style: Modern
Place of Origin: China
Balustrade: Tempered glass 10mm
Control system: VVVF drive
Travel height: can be customized
Load capacity: 400~2000kg
Car ceiling: Acrylic lignting plate, LED light
