Product Details:
|
| Gearless Motor: | VVVF Driving | Power: | AC 220V 380V Singel/3 Phase |
|---|---|---|---|
| Voice Stop: | With Speaker | LED Displayer: | 7 Inches |
| High Light: | 1300kg mrl gearless elevator,microcontroller mrl gearless elevator,12 persons mrl gearless elevator |
||
Guangdong Fuji Freight Elevator-Heavy Accumulation, Steady Energy Saving
Pave the way for practical vertical transportation
Mature VVVF technology, large cargo space, combined with safe technology and humanized design, create a high-quality cargo elevator for Guangdong Fuji. It has high-quality characteristics such as safety and durability, stable operation, energy saving and environmental protection, and is more suitable for cargo transportation, and can easily cope with important occasions with frequent cargo in and out and high elevator utilization.
Multiple considerations for super carrying
Guangdong Fuji Freight Elevator uses a fully computerized modular elevator dedicated control system, efficient and reliable drive mode, and a soft and sensitive VVVF variable frequency door operator, which makes it easy to carry and respond freely under various working conditions; high-strength sedan The structure of the compartment, the anti-collision strip and the light curtain door can meet various cargo purposes and use different building structures, making more load-bearing and heavy lifting more capable. Create a new concept of cargo transportation.
Function for Residential Home Elevators and villa elevator
| B | Standard Function | O | Optional Function |
| Safety Features | |||
| Fault Detection | |||
| B | Motor Overheating Protection | B | Forbidden Switch of Door Opening |
| B | Subsection Inspection of Safety Circuit | B | Speed Governor Tension Safety Contacts |
| B | Main Power Switch Box | B | Car Door Contacts |
| B | Running Hours Cumulating | B |
Car Lighting Main Switch Box Main Fuse Inside of Controller Box |
| B | Car Positioning Switch | B | Pit Brace Rod Contacts |
| B | Car Emergency Stop Switch--Car Top | B | Car Top Brace Rod Contacts |
| B | Car Emergency Stop Switch--Pit | B | Electrical Brake Releasing Function |
| B | Safety Gear Safety Contact | B | Car Emergency Light |
| B | Speed Governor Safety Contacts | O | ARD--- Automatic Rescue Device |
| B | Main Switch Inside Controller Box | B | Emergency Call(One Digit Dial Telephone) |
| Information Function | Comfort Functions | ||
| Landing Information Display | Entering & Exit Cabin | ||
| B | Landing Call Indicating Light | B | Door Opening Button |
| O | Travelling Direction Indicators at Every Floor, Floor Number Display | B | Door Closing Button |
| B | Light Curtain | ||
| Inside Cabin Information Display | Comfortable Running | ||
| B | COP Call Indicating Light | B | Car Lighting |
| B | Overload Symbol& Buzzer | B | Fan |
| B | Car Position Display | O | Background Music |
| B | Travelling Direction Indicators | O | Voice Announcer |
| CCTV Camera | Misusage Protection | ||
| B | Door Zone Indicating Light | B | Calling Cancellation by 2 Times Button Pressing on COP |
| B | Running Times Accumulating | B | Viscous Button Monitoring |
| B | Normal Fault Signal | B | Opposite Direction Calling on COP |
| Control Functions | |||
| Prior/Special Service Functions / Special Functions | |||
| B | Landing Call Forbidden | B | Testing Running |
| B | Auto Door | O | Functions for Disabled (Braille Button, Voice Announcer) |
| B | Door Opening and Closing Timing at Each Floor, Unified Regulation | B | Re-Opening Door When Landing Call |
| B | Inspection Running | O | Through Opening Door |
| B | Emergency Returning | O | Optional Door is Available (If It is Through Opening) |
Elevator technical parameter (MRL elevator)
| Model | Capacity | Persons | Speed | Cabin | Net opening size | Shaft | Overhead Height | Pit Depth | |||
| CW | CD | JJ | HH | HW | HD | OH | PH | ||||
| TKJ450/0.63 | 450 | 6 | 0.63 | 1100 | 1100 | 700 | 2100 | 2000 | 1700 | 4100 | 1700 |
| TKJ450/1.0 | 1 | 4100 | 1700 | ||||||||
| TKJ450/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ630/1.0 | 630 | 8 | 1 | 1400 | 1100 | 800 | 2100 | 2300 | 1700 | 4100 | 1700 |
| TKJ630/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ630/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ800/1.0 | 800 | 10 | 1 | 1400 | 1350 | 800 | 2100 | 2300 | 1800 | 4100 | 1700 |
| TKJ800/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ800/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1000/1.0 | 1000 | 13 | 1 | 1600 | 1400 | 900 | 2100 | 2500 | 1900 | 4100 | 1700 |
| TKJ1000/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ1000/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1250/1.0 | 1250 | 16 | 1 | 1900 | 1500 | 1100 | 2100 | 2900 | 2000 | 4100 | 1700 |
| TKJ1250/1.5 | 1.5 | 4200 | 1800 | ||||||||
| TKJ1250/1.75 | 1.75 | 4200 | 1800 | ||||||||
| TKJ1600/1.0 | 1600 | 21 | 1 | 2000 | 1750 | 1100 | 2100 | 3000 | 2400 | 4500 | 1700 |
| TKJ1250/1.5 | 1.5 | 4600 | 1800 | ||||||||
| TKJ1250/1.75 | 1.75 | 4600 | 1800 | ||||||||

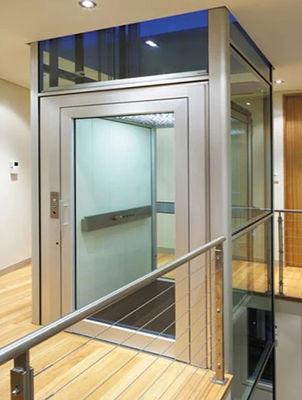

Residential Home Elevators and villa elevator, whether in terms of quality or decoration, is dedicated to creating a permanent, graceful enjoyment in life. Special inverter systems control the running position, upgrading the comfort feeling all-sided. With the advanced permanent magnet synchronous technology adopted, the advantage of energy-saving is maintained and the elevator is more rationally arranged in a concise way. It is compact and economic elevator for the villa-like and multistoried buildings, and ideal lifting vehicle for old man, patient and disabled people.
Product Features
Key Components
1. Elevator Traction Machines
Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.
2. Elevator Door System
Adopts VVVF technology and it ensures noiseless and smooth operation.
3. Control System adopts Full Serial Villa Elevator Controller
Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.
2.2kw low power is specially designed for villa elevator.
4. Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
