Product Details:
|
| Capicity: | 1-10 Tons | Lifting Height: | 1-8m |
|---|---|---|---|
| Floor: | Ship Deck Steel | Warranty: | 12month |
| Weighting System: | Choised | ||
| High Light: | Guide rail type commercial freight elevator,6 Tons commercial freight elevator,4m outdoor cargo lift |
||
Introduce

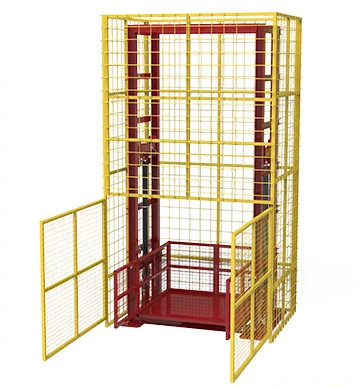

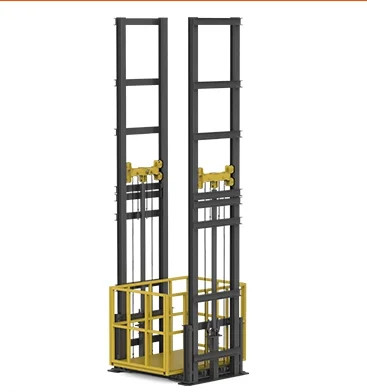

This cargo lift elevator droved by the electric and hydraulic system, lifting up and down along the guide rail.
Equipped single side or double sides hydraulic cylinder to keep the machinery works smooth and steady.
Installation & Control
• Installed in the pit or the ground floor.
• Control panels both on ground and top floor.
Standard Configuration
• Use high strength H Steel materials as guide rail structure.
• 1 or 2 pcs high strength hydraulic cylinder.
• Manual down valve on the machine..
• Anti-Rust and Anti-corrosion painting.
• Digital display control panels on every floor.
• Emergency stop: lifting and lowering process can be stopped immediately.
| No. | Structure | Material name | Material | Specification |
| 1 | Body materials | Lead rail | manganese steel | 125*125H |
| 2 | Counter-tops truss | Q235C | 12# channel steel | |
| 3 | Up platform | Q345B | checkered plate 4mm | |
| 4 | Cylinder arm | Q235 | original tablet 9mm | |
| 5 | connecting pin | heat treatment 45# | Round steel 60*48mm | |
| 6 | Chain | |||
| 7 | Oil-lubricated bearings | |||
| 8 | Hydraulic system | Precision Hydraulic Cylinders | ||
| 9 | Sealing elements | |||
| 10 | High pressure piping | |||
| 11 | Supporting valve | |||
| 12 | Electric control |
AC contractor | CJX1 | |
| 13 | Limit switches | YBLX-K3-20X/T | ||
| 14 | Micro Switch | |||
| 15 | Electric motor | 3KW | ||
| 16 | Voltage | customized | ||
Pave the way for practical vertical transportation
Mature VVVF technology, large cargo space, combined with safe technology and humanized design, create a high-quality cargo elevator for Guangdong Fuji. It has high-quality characteristics such as safety and durability, stable operation, energy saving and environmental protection, and is more suitable for cargo transportation, and can easily cope with important occasions with frequent cargo in and out and high elevator utilization.
Multiple considerations for super carrying
Guangdong Fuji Freight Elevator uses a fully computerized modular elevator dedicated control system, efficient and reliable drive mode, and a soft and sensitive VVVF variable frequency door operator, which makes it easy to carry and respond freely under various working conditions; high-strength sedan The structure of the compartment, the anti-collision strip and the light curtain door can meet various cargo purposes and use different building structures, making more load-bearing and heavy lifting more capable. Create a new concept of cargo transportation.
Large opening distance
It adopts diversified door opening methods, and the door width is large, which is convenient for the in and out of large goods.
Light curtain protection
A light curtain protection barrier is formed at the entrance of the elevator, which can react sensitively to any object that enters its detection range, effectively protecting the safety of people and goods.
strong and sturdy
The car chassis is made of high-strength profiles, and the specially reinforced design of the car chassis is durable.
