Product Details:
|
| Capacity: | 6-20persons | Energy Saving: | Home Lift Only 1 Kw With LED Light |
|---|---|---|---|
| Delivery Fast: | 1 Week Can Be Deliveried When Order Is Normall Size | Affordable Price: | With High Quality First,factory Pricing |
| Customizable: | Following Client's For Decorative Materials | ||
| High Light: | 1050KG mrl passenger elevator,14 persons mrl passenger elevator,3.0m/s lift for residential building |
||

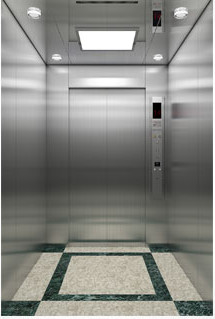

1050KG 14 Persons MRL Passenger Elevator 3.0m/s Lift For Residential Building
Quick Details
Warranty: 1 Year, 13 months
After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
Application: Office Building
Design Style: Modern
Place of Origin: China
Take technology as a weapon and design as a pioneer
Technically, it adopts a new generation of permanent magnet synchronous gearless traction machine and computer control technology, combines a data network system and a modular structure, and uses an effective self-check program to make the elevator system control more flexible, accurate, efficient and reasonable.
Small machine room passenger elevator
Save building space, expand building space utilization, make the operation more sensitive and reliable, make the building more elegant and beautiful, small machine room elevator, using rare earth material permanent magnet synchronous gearless traction machine and elevator special thin control cabinet, reducing 25mm The height of the machine room makes the area of the machine room consistent with the area of the hoistway.
| Model No | Passenger elevator 1 | ||||||
| person | 6 | 8 | 10 | 14 | 18 | 21 | |
| capacity(kg) | 450 | 630 | 800 | 1050 | 1350 | 1600 | |
| speed(m/s) | 1.0-2.0 | 1.0-2.0 | 1.0-3.0 | 1.0-3.0 | 1.0-3.0 | 1.0-3.0 | 5.0 |
| size in the car(mm) | 1200*1000 | 1400*1100 | 1400*1350 | 1600*1500 | 1800*1650 | 1950*1750 | |

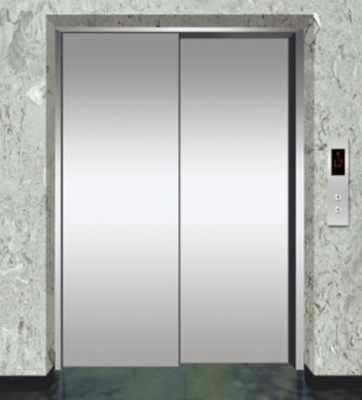

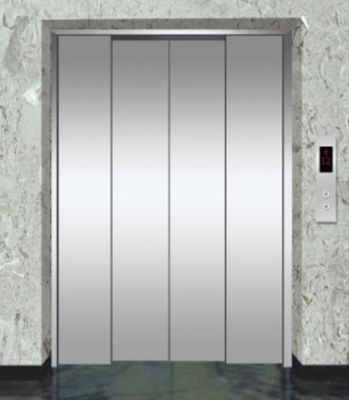

| door opening size(mm) | 700*2100 | 800*2100 | 800*2100 | 900*2100 | 1000*2100 | 1100*2100 | |
| hoistway size(mm) | 1800*1650 | 2000*1750 | 2000*2000 | 2200*2200 | 2400*2400 | 2650*2500 | 2650*2800 |
| machine room size(mm) |
1800* 1650*2500 |
2000* 1750*2500 |
2000* 2000*2500 |
2200* 2200*2500 |
2400* 2400*2500 |
2650* 2500*2500 |
2650* 2800*3000 |
| top floor height(mm) | 4500 | 4600 | 4700 | 4800 | 5000 | 5400 | 8000 |
| pit depth(mm) | 1500 | 1600 | 1700 | 1800 | 2200 | 2500 | 6000 |
| Technical Specification |
