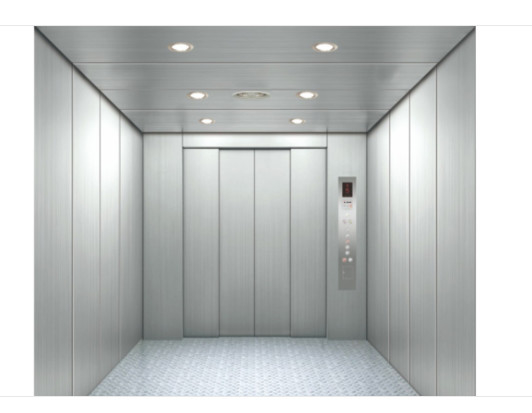

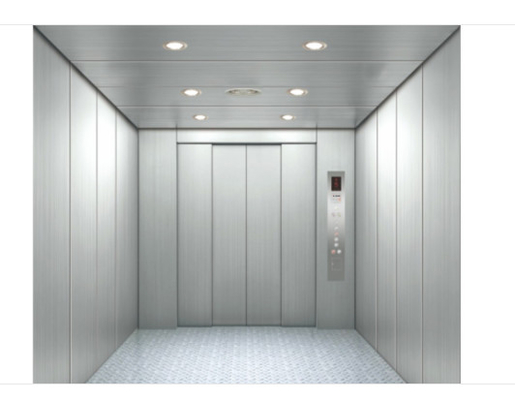

2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift

2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift
2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift 2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift 2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift

Large Image :  2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift

Product Details:
Place of Origin: China
Brand Name: Guangdong Fuji freight elevator
Certification: ICP
Model Number: Fj-Fr001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Factory price
Packaging Details: Sea shipping
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50units/month

2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift

Description
Capacity: 2-18tons Speed: 0.4m/s
Controll Way: VVVF Inveter Power: 3phase 380VAC
Floor: Deck Steel Roping: 4:1 2:1
Rail Guide: Solid Steel 4 Rowes Or 6 Rowes Gear Motor: 4Kw
High Light:

machine roomless freight tech elevator

,

2 tons freight tech elevator

,

VVVF control vertical freight lift

2 Tons Freight Tech Elevator VVVF Control Vertical Freight Lift



Solid and durable cabin


The high-intensity plate bending and shaping techniques ensure that the car is firm and durable. Specially designed anti-bump guardrail can be additionally equipped to guarantee the multi-protection to the car.



The highly precise leveling

It adopts high-resolution coding technology to make the elevators’ leveling accuracy to 5mm.



Infrared light curtain protection system

Within the whole height of car door, infrared ray optical curtain protection system with high induction and sensitivity is installed to guarantee the safety of the goods and people to come in and out of the elevator.



Anti-bump guardrail


The special design of the anti-bump guardrail makes the car get multi-protection.



Frequency conversion motor

Frequency conversion asynchronous traction machine’s characteristics, such as safely, high efficiency, energy saving, smooth operation and good lubrication performance, greatly satisfy the users’ high demand on the elevators’ stability, energy saving and smooth operation.



<

Machine room panoramic lift standard parameter list:
Loading capacity Speed Standard cabin size Standard shaft size Pit depth Overhead
(kg) Persons (m/s) Width Depth Width Depth (mm) (mm)
(mm) (mm) (mm) (mm)
630 8 1.0~2.5 1300 1200 1800 1800 1500 4200
800 10 1.0~2.5 1400 1350 1900 2000 1500 4200
1000 13 1.0~2.5 1600 1400 2100 2100 1500 4200
1350 18 1.0~2.5 1900 1600 2400 2300 1500 4200
1600 21 1.0~2.5 2000 1700 2500 2400 1500 4200



<



No. Structure Material name Material Specification
1 Body materials Lead rail manganese steel 125*125H
2 Counter-tops truss Q235C 12# channel steel
3 Up platform Q345B checkered plate 4mm
4 Cylinder arm Q235 original tablet 9mm
5 connecting pin heat treatment 45# Round steel 60*48mm
6 Chain
7 Oil-lubricated bearings
8 Hydraulic system Precision Hydraulic Cylinders
9 Sealing elements
10 High pressure piping
11 Supporting valve
12 Electric control AC contractor CJX1
13 Limit switches YBLX-K3-20X/T
14 Micro Switch
15 Electric motor 3KW
16 Voltage customized
